Trimline Gutter

Description

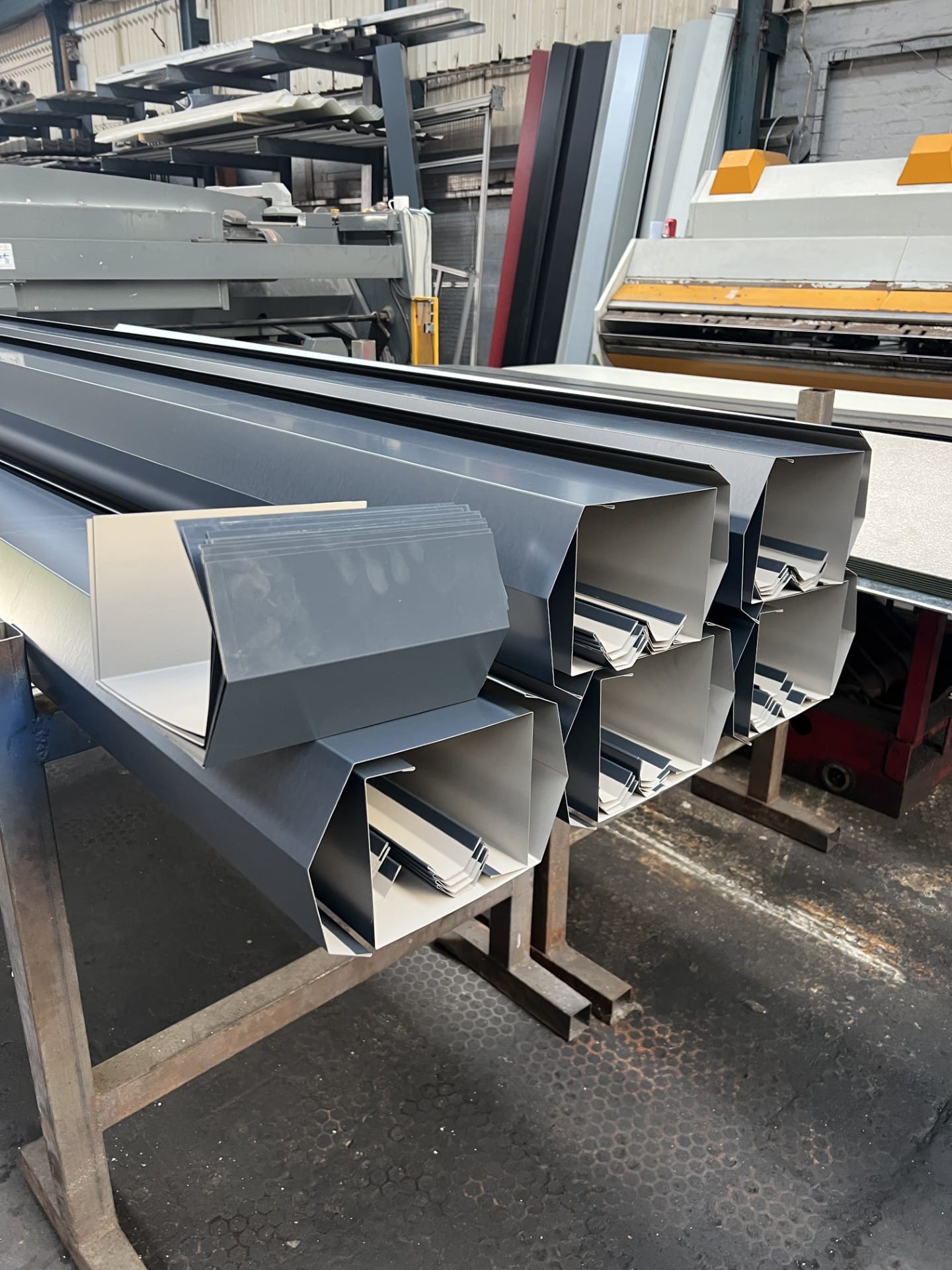

The Trimline Gutter is a high-capacity, modern rainwater system designed for use with profiled metal roofing. Its sharp, square-edged profile offers a smart, professional finish, making it ideal for both residential and commercial applications.

Gutters are supplied as individual 3m lengths. The tapered design means each length simply slides into the next, giving a clean, secure joint with no straps required. Support arms and stop ends are available separately as optional extras — just add what you need to your order.

Material & Finish

• Galvanised steel with a plastisol or polyester coating
• Available in standard industry colours (e.g., Anthracite, Juniper Green, Goosewing Grey)
• Material thickness: 0.5mm to 0.7mm, depending on project needs

Typical Dimensions

• Width: 125mm–150mm
• Depth: 100mm–120mm
• Supplied in 3m standard lengths (cut-to-length available on request)

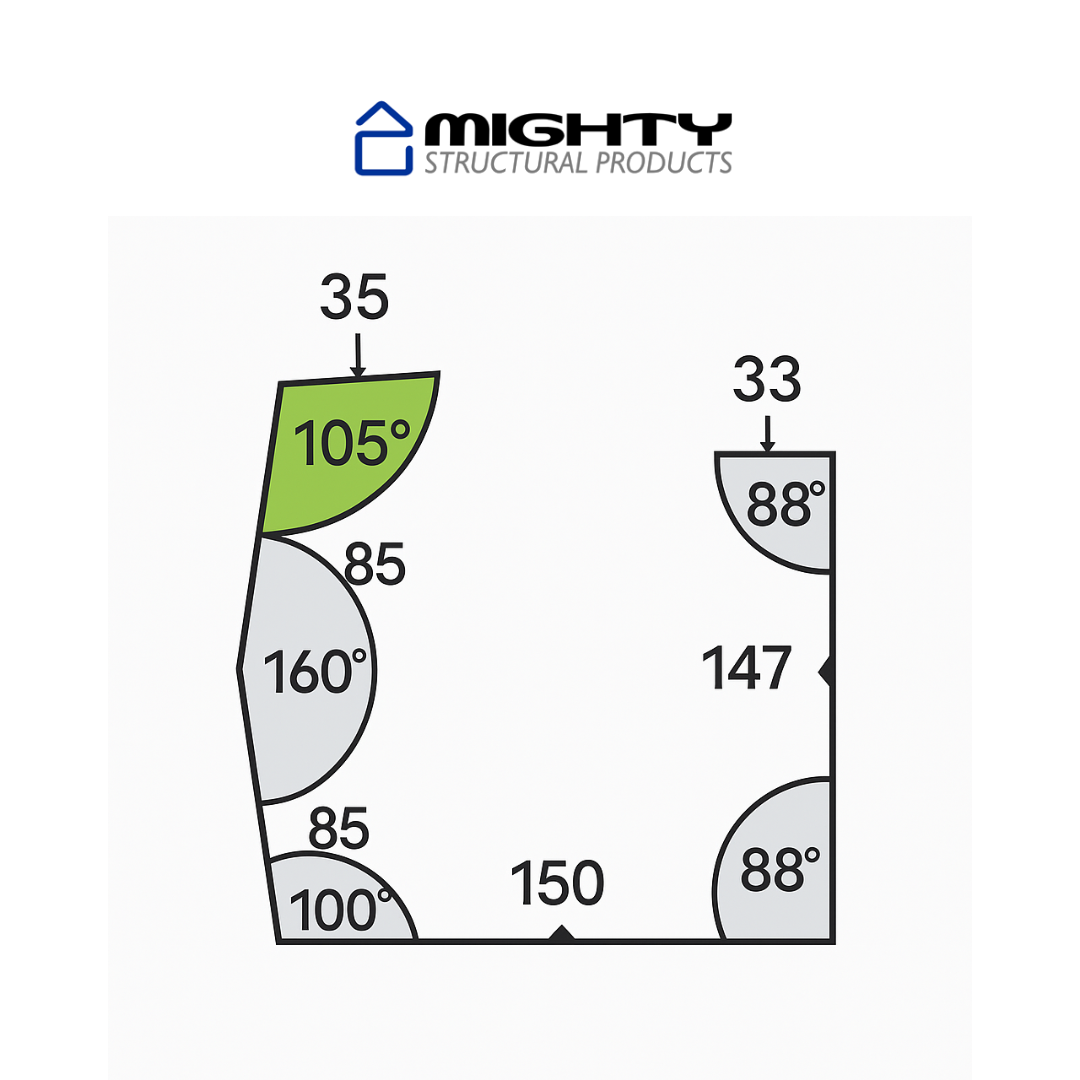

A full dimensional diagram is provided alongside for reference.

Installation & Compatibility

• Fixed using Trimline Gutter Support Arms (available separately)
• Tapered profile — lengths slide into each other for quick, strap-free jointing
• Designed to work with 32/1000 box profile and other profiled metal sheets

Optional Extras

• Trimline Gutter Support Arms (Set of 3)
• Left-Hand Stop End
• Right-Hand Stop End

Performance Highlights

• Modern, low-profile design for a clean architectural finish
• High flow rate for effective water drainage
• Weather-resistant and long-lasting coated finish
• Low-maintenance and easy to install
